Learn how to build an interactive Expenses Analytics Dashboard in Excel using Pivot Tables, Pivot Charts, KPI cards, and slicers with this step-by-step tutorial.

Managing expenses in Excel is easy. Understanding where the money is going is the difficult part.

A spreadsheet with hundreds or thousands of transactions can quickly become overwhelming. You may have dates, departments, categories, payment methods, approval statuses, and amounts—but finding meaningful insights from all that data takes time.

That is where an interactive Excel dashboard becomes useful.

In this tutorial, I’ll show you how to build an Expenses Analytics Dashboard in Excel using:

• Pivot Tables
• Pivot Charts
• Slicers
• KPI Cards
• Excel Shapes
• Interactive filters

By the end, you’ll have a dashboard that allows you to filter the entire report with just a few clicks.

What makes this dashboard powerful is not the design alone. The real power comes from connecting your raw data, Pivot Tables, charts, and slicers into one interactive reporting system.

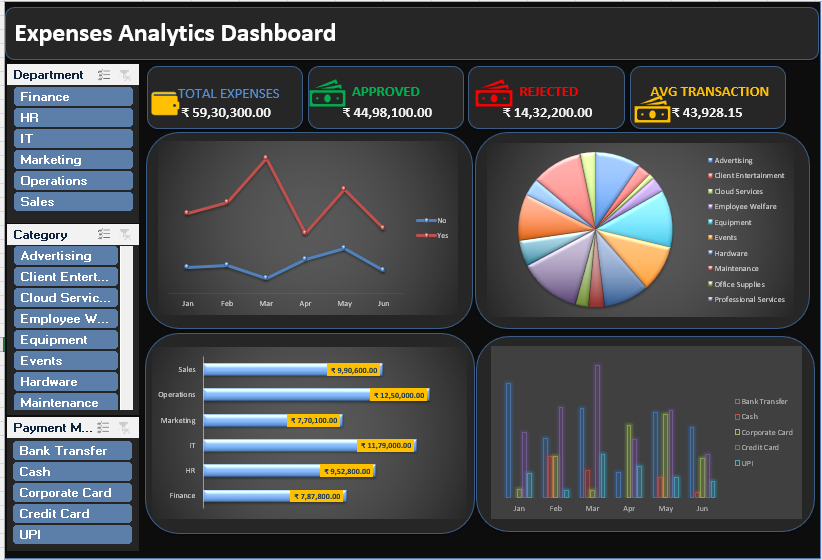

What You’ll Build

The final dashboard will include:

• Total Expenses
• Approved Expenses
• Rejected Expenses
• Average Transaction Value
• Monthly Expense Trend
• Category-wise Expense Analysis
• Department-wise Expenses
• Payment Method Analysis
• Interactive slicers for filtering the entire dashboard

The overall structure looks like this:

RAW DATA
↓
EXCEL TABLE
↓
PIVOT TABLES
↓
PIVOT CHARTS + KPI CALCULATIONS
↓
SLICERS
↓
INTERACTIVE DASHBOARD

Step 1: Prepare Your Raw Expense Data

Before creating any dashboard, make sure your source data is properly organized.

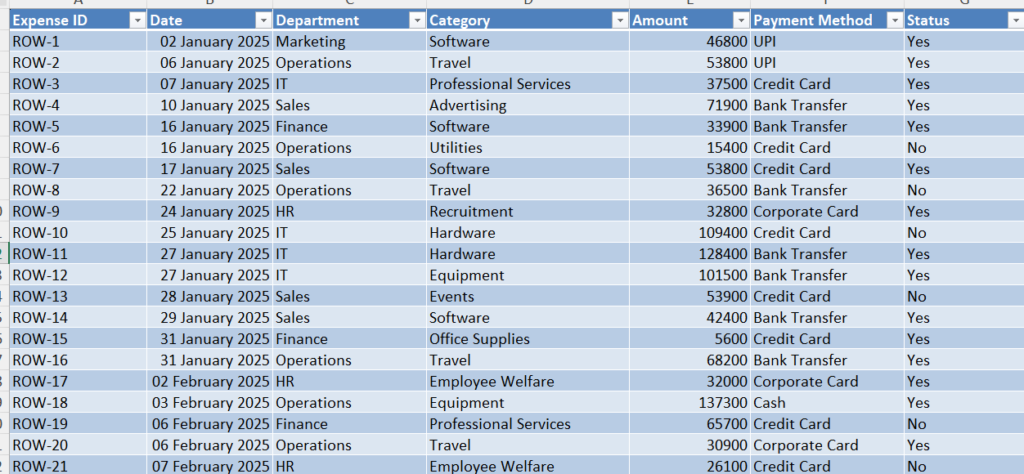

Your data should look something like this:

Recommended columns

For this dashboard, use:

• Date
• Month
• Department
• Category
• Payment Method
• Status
• Amount

Convert the data into an Excel Table

This step is highly recommended.

1. Select your entire dataset.
2. Press Ctrl + T.
3. Check My table has headers.
4. Click OK.

Using an Excel Table makes your dashboard easier to maintain because new rows can be included when you refresh your Pivot Tables.

Step 2: Create a Separate Pivot Table Sheet

Don’t build all your calculations directly on the Dashboard sheet.

Instead, create a separate worksheet called:

Pivots

This will act as the backend of your dashboard.

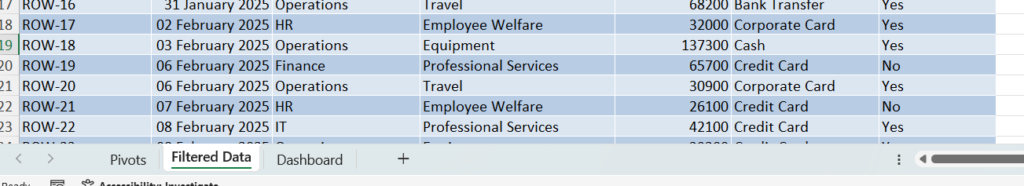

Your workbook structure can look like this:

Sheet 1 — Filtered Data

Your original expense transactions.

Sheet 2 — Pivots

All Pivot Tables and calculations.

Sheet 3 — Dashboard

The final interactive visual report.

This structure keeps your workbook much cleaner and easier to manage.

Step 3: Create the Total Expenses KPI

The first KPI shows the total amount spent.

Create a Pivot Table

1. Select your Excel Table.
2. Go to Insert → PivotTable.
3. Choose the Pivots sheet.

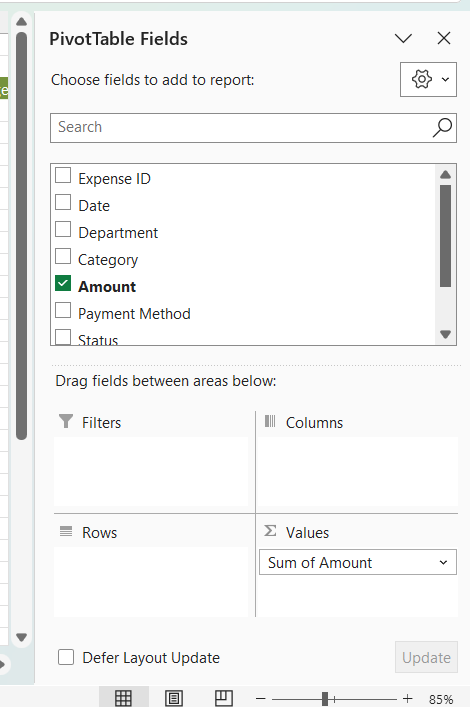

In the PivotTable Fields panel:

Values

Add:

Amount → Sum

You will now have your total expense value.

For example:

₹59,30,300.00

This value will later be displayed in your Total Expenses KPI card.

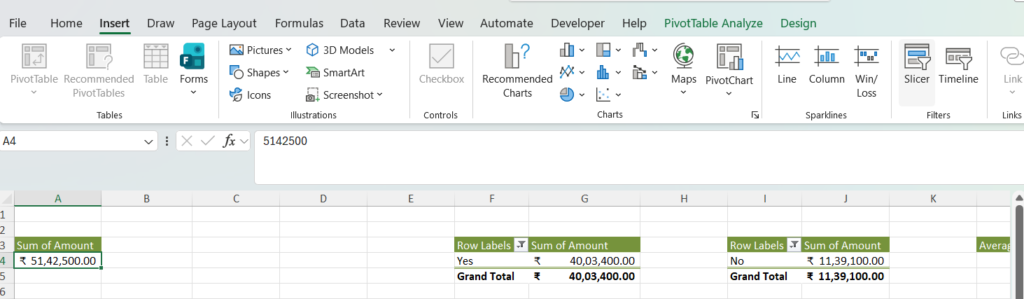

Step 4: Create the Approved Expenses KPI

Create another Pivot Table.

This time, you need to calculate the total amount for approved transactions.

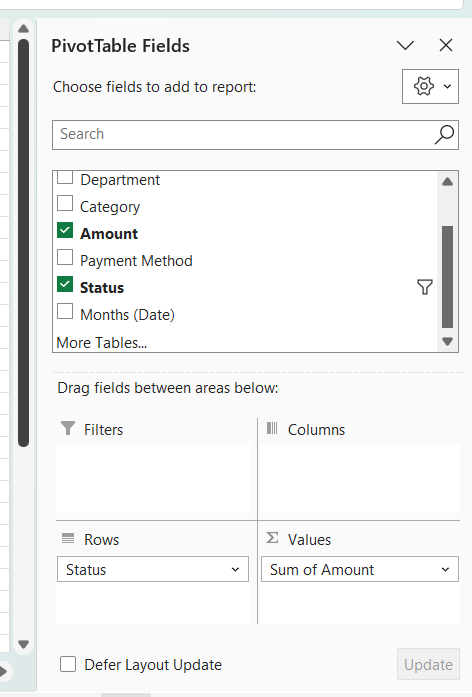

Pivot Table setup

Use:

Rows or Filter

Rows-Status

Select:

Approved

Values

Amount → Sum

This gives you the total approved expenses.

For example:

₹44,98,100.00

Step 5: Create the Rejected Expenses KPI

Create another Pivot Table for rejected transactions.

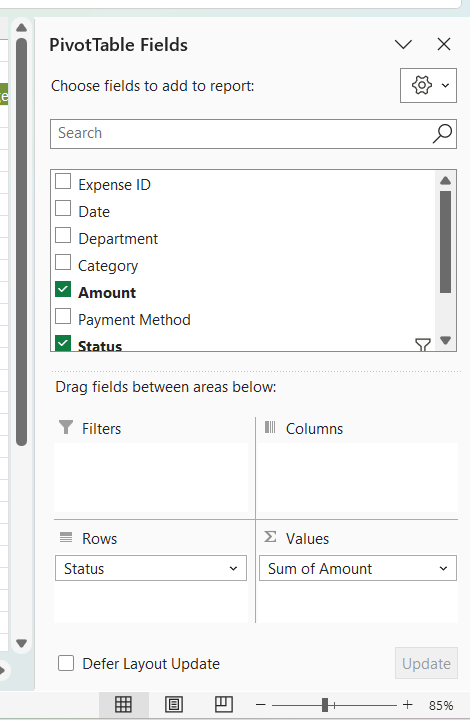

Setup

Filter:

Rows-Status

Then add:

Amount → Sum

This gives you the rejected expense amount.

For example:

₹14,32,200.00

Step 6: Create the Average Transaction KPI

Now create the fourth KPI.

Add a new Pivot Table and configure:

Values

Amount → Average

You will get the average transaction value.

For example:

₹43,928.15

Now your four main KPIs are ready:

Step 7: Build the Monthly Expense Trend

The first major chart in the dashboard shows how expenses change over time.

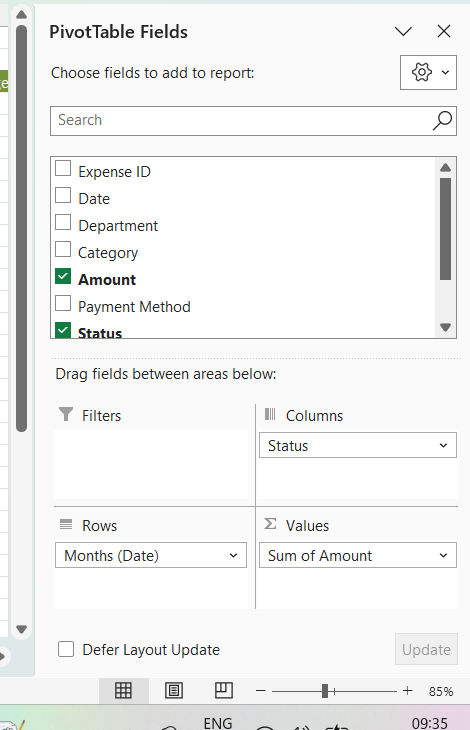

Create a Pivot Table with the following structure.

Rows

Month

Columns

Status

Values

Amount → Sum

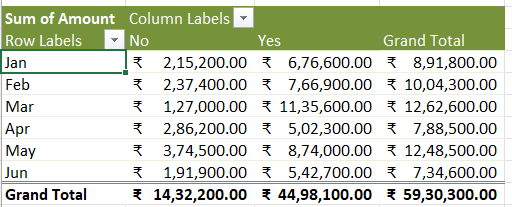

Your Pivot Table may look like this

Create the Line Chart

1. Click anywhere inside the Pivot Table.
2. Go to Insert → Chart.
3. Select:

Line with Markers

You will now have a chart showing monthly trends for approved and rejected expenses.

This chart makes it easy to identify:

• Months with high spending
• Changes in approved expenses
• Changes in rejected expenses
• Unusual spikes

Step 8: Create the Category-wise Expense Analysis

Now let’s see where the money is being spent.

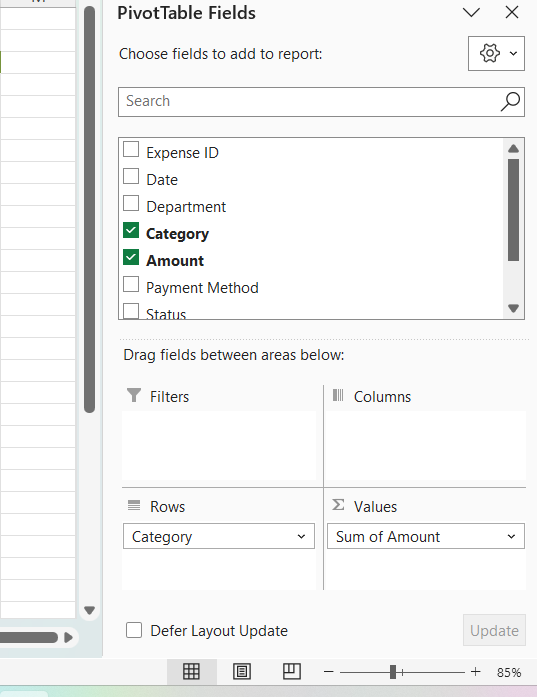

Create another Pivot Table.

Rows

Category

Values

Amount → Sum

Your categories may include:

• Advertising
• Client Entertainment
• Cloud Services
• Employee Welfare
• Equipment
• Events
• Hardware
• Maintenance
• Office Supplies
• Professional Services
• Recruitment
• Software
• Training
• Travel
• Utilities

Create the Pie Chart

Select the Pivot Table and go to:

Insert → PivotChart → Pie Chart

Place the legend on the right side.

This chart helps answer an important business question:

Which expense categories are consuming the largest share of the budget?

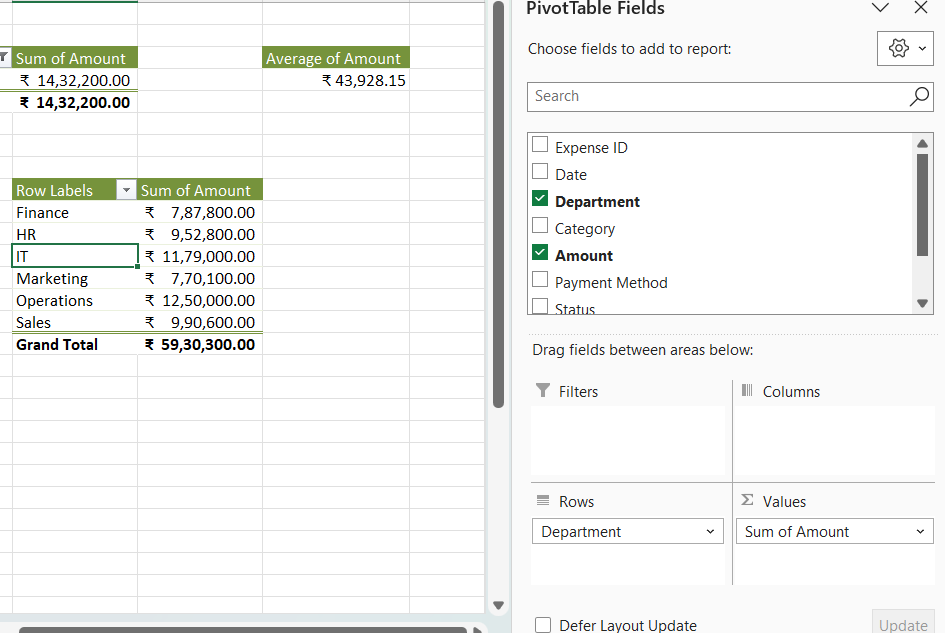

Step 9: Create the Department-wise Expense Chart

Next, let’s compare expenses between departments.

Create a Pivot Table.

Rows

Department

Values

Amount → Sum

Your departments might include:

• Finance
• HR
• IT
• Marketing
• Operations
• Sales

Now create a:

Clustered Bar Chart

Go to:

Insert → PivotChart → Bar → Clustered Bar

A horizontal bar chart works particularly well here because department names remain easy to read.

Add data labels if you want users to see the exact amount.

Step 10: Create the Payment Method Analysis

The final chart compares spending across different payment methods.

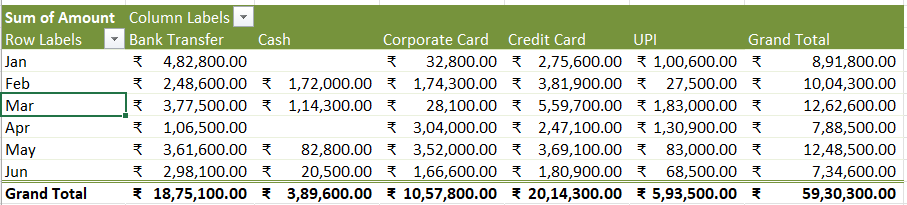

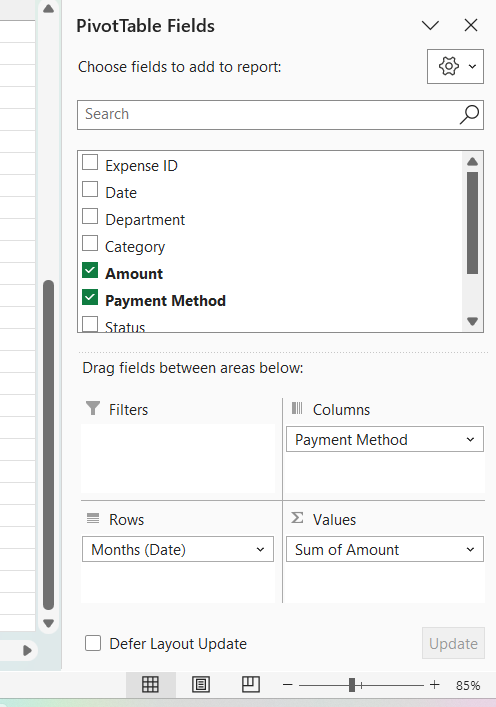

Create a Pivot Table with:

Rows

Month

Columns

Payment Method

Values

Amount → Sum

Your payment methods might include:

• Bank Transfer
• Cash
• Corporate Card
• Credit Card
• UPI

Now insert:

Clustered Column Chart

This allows you to compare payment methods across multiple months.

It’s particularly useful for identifying questions such as:

• Which payment method is used most frequently?
• How does payment behavior change each month?
• Are certain payment methods responsible for higher expenses?

Step 11: Create the Dashboard Layout

Once all your Pivot Tables and charts are ready, create a new sheet called:

Dashboard

Instead of relying on normal Excel cells for the design, use Shapes to create a cleaner layout.

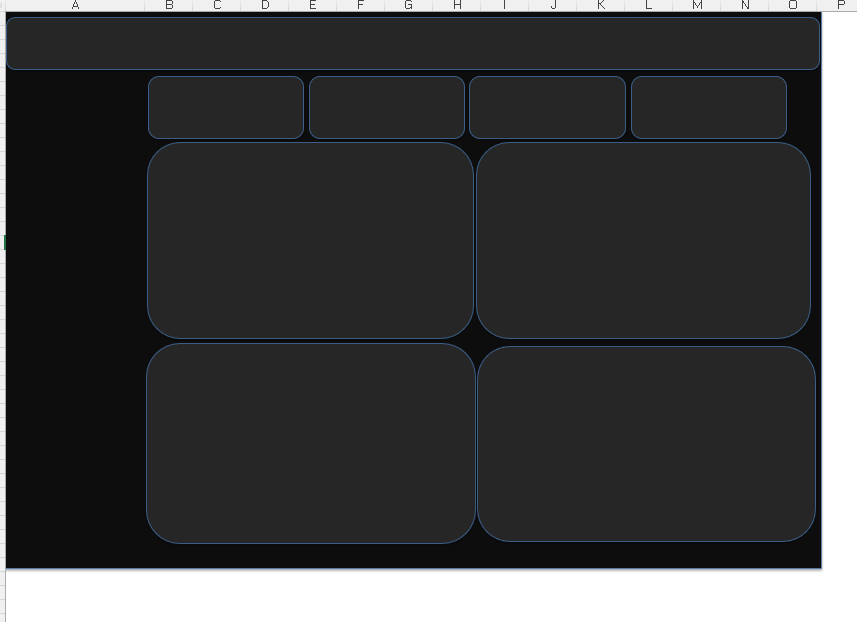

A simple dashboard structure could look like this:

Step 12: Add the Main Dashboard Background

Go to:

Insert → Shapes → Rectangle

Create one large rectangle that covers the dashboard area.

Then add smaller rounded rectangles for:

• KPI Cards
• Charts
• Dashboard Header

A simple design rule

Use the same:

• Border style
• Corner radius
• Font
• Spacing

throughout the dashboard.

Consistency is what makes an Excel dashboard look professional.

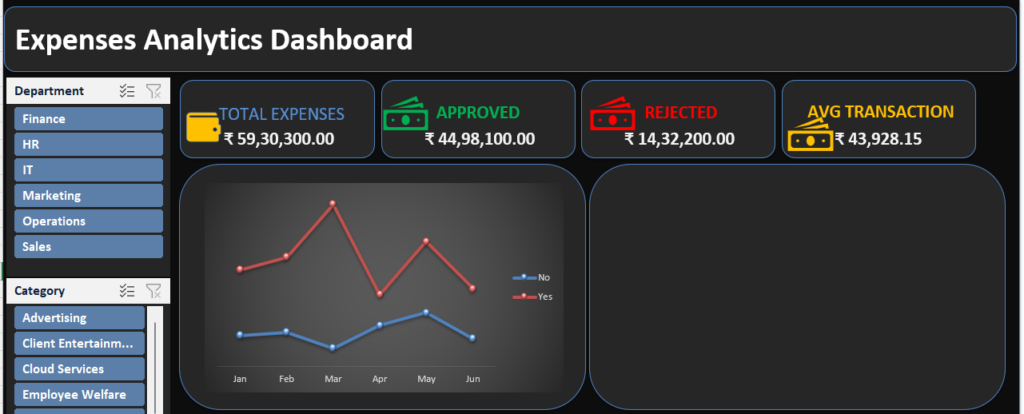

Step 13: Create the KPI Cards

Create four rounded rectangles at the top.

Your cards can display:

💳 Total Expenses

₹59,30,300.00

✓ Approved

₹44,98,100.00

✕ Rejected

₹14,32,200.00

▣ Average Transaction

₹43,928.15

Important: Don’t manually type the values

The KPI values should come from your Pivot Table calculations.

You can link a cell or text box to a Pivot Table result.

For example:

=Pivots!B4

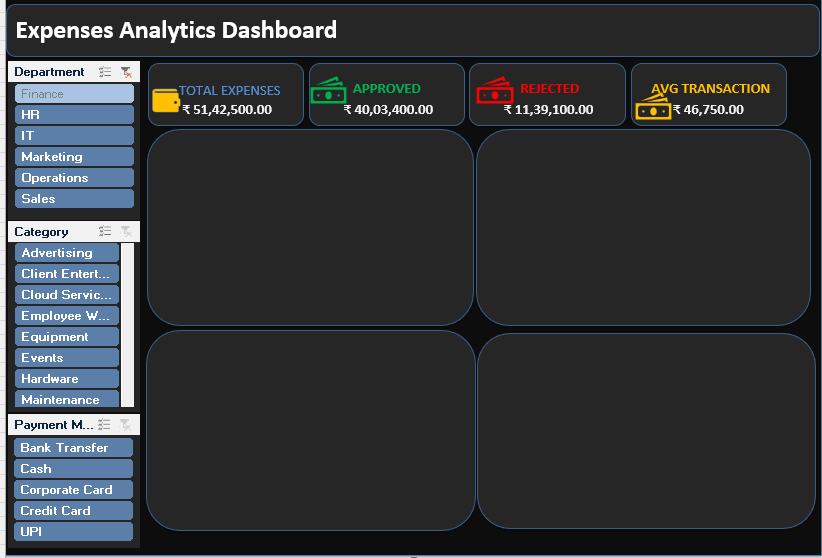

Step 14: Add Interactive Slicers

This is where your dashboard becomes truly interactive.

Select one of your Pivot Tables and go to:

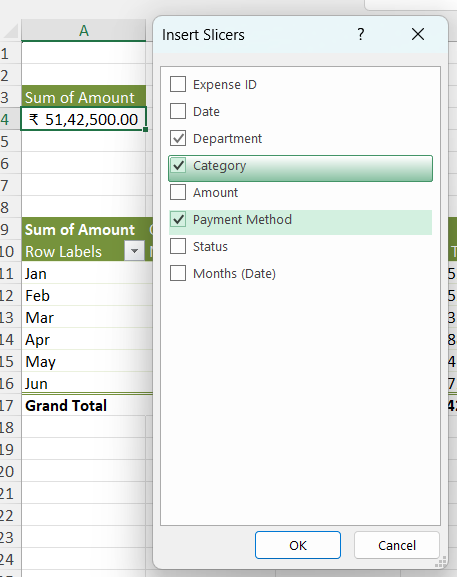

PivotTable Analyze → Insert Slicer

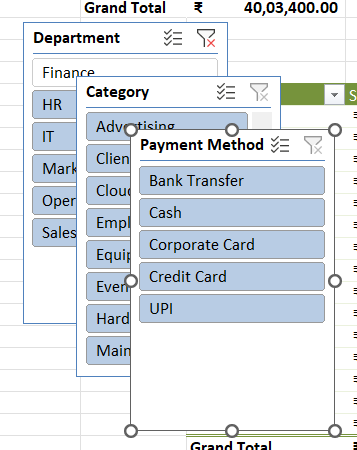

Create slicers for:

Department

Examples:

• Finance
• HR
• IT
• Marketing
• Operations
• Sales

Category

Examples:

• Advertising
• Software
• Hardware
• Events
• Travel

Payment Method

Examples:

• Bank Transfer
• Cash
• Corporate Card
• Credit Card
• UPI

Move the slicers to the left side of your dashboard.

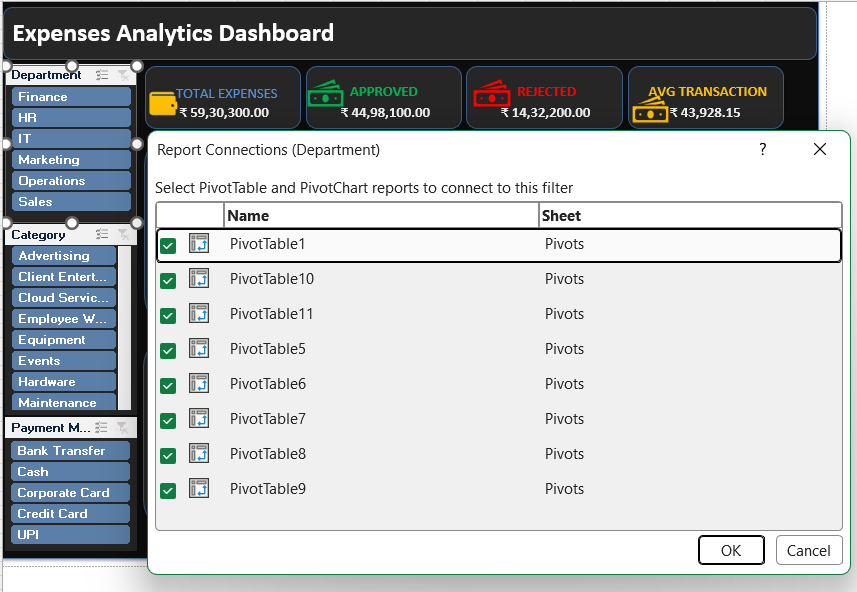

Step 15: Connect the Slicers to Every Pivot Table

This is the most important step in the entire process.

A slicer will not automatically control every Pivot Table.

You need to connect it manually.

How to do it

1. Right-click the slicer.
2. Select Report Connections or PivotTable Connections.
3. Select all the Pivot Tables you want the slicer to control.

For example, your Department slicer should ideally connect to:

• Total Expenses
• Approved Expenses
• Rejected Expenses
• Average Transaction
• Monthly Trend
• Category Analysis
• Department Analysis
• Payment Method Analysis

Repeat the process for the other slicers.

Why Report Connections Matter

Once everything is connected, clicking:

Finance

will instantly update:

✓ Total Expenses
✓ Approved Expenses
✓ Rejected Expenses
✓ Average Transaction
✓ Monthly Trend
✓ Category Chart
✓ Department Chart
✓ Payment Method Chart

That is what turns a collection of charts into a real interactive Excel dashboard.

Step 16: Hide PivotChart Buttons

PivotCharts often display field buttons such as:

Month ▼
Sum of Amount ▼

These buttons make a finished dashboard look less polished.

To remove them:

1. Click your PivotChart.
2. Go to PivotChart Analyze.
3. Select:

Field Buttons → Hide All

Do this for every chart.

Step 17: Remove Gridlines

Gridlines can make a professional dashboard feel like an unfinished worksheet.

Go to:

View

Then uncheck:

• Gridlines
• Headings

Your dashboard will immediately look cleaner.

Step 18: Format Everything Consistently

Before considering the dashboard finished, review the following.

Dashboard checklist

Layout

• All charts are properly aligned
• Cards have equal spacing
• Slicers are aligned
• Nothing overlaps

Design

• Consistent fonts
• Consistent borders
• Consistent background colors
• Consistent corner radius

Charts

• Remove unnecessary gridlines
• Hide PivotChart buttons
• Keep legends readable
• Avoid excessive colors
• Use data labels only where they add value

Functionality

• All slicers are connected
• KPIs update correctly
• Charts update correctly
• Pivot Tables refresh properly

The Best Workbook Structure for This Dashboard

I recommend organizing your Excel file like this:

📁 Filtered Data

Contains the original expense transactions.

📊 Pivots

Contains all backend Pivot Tables.

📈 Dashboard

Contains the final interactive report.

This separation makes troubleshooting much easier.

If something goes wrong with a chart, you know exactly where to check: the Pivot sheet.

If a value looks incorrect, check the source data.

If the calculations are correct but the design looks wrong, check the Dashboard sheet.

Final Thoughts

Building an Excel dashboard is not just about creating attractive charts.

The real process is about building a reliable connection between your data and your visuals:

Clean Data → Structured Table → Pivot Tables → Interactive Filters → Useful Insights

Once you understand this workflow, you can use the same method to build many other dashboards, including:

• Sales Dashboards
• HR Dashboards
• Financial Dashboards
• Marketing Dashboards
• Inventory Dashboards
• Project Management Dashboards

The design may change, but the underlying process remains almost the same.

Frequently Asked Questions

Can I build this dashboard without VBA?

Yes. This dashboard can be created using standard Excel features such as Pivot Tables, Pivot Charts, Shapes, formulas, and slicers.

Will the dashboard update when I add new data?

Yes, provided your source data is stored in an Excel Table. After adding new records, refresh the Pivot Tables using:

Data → Refresh All

Can one slicer control multiple charts?

Yes. Use Report Connections to connect a slicer to multiple Pivot Tables that share the same data source.

Why are my KPI cards not updating?

Usually, this happens because the KPI cell is not linked correctly to the Pivot Table, or the slicer is not connected to the Pivot Table behind that KPI.

What is the most important part of building this dashboard?

The most important part is the data structure and Pivot Table connections. A beautiful design cannot fix incorrect data or disconnected slicers.

Dashboard Download
